Agibot D1 Max

A wheel-legged quadruped with a 30 kg rated payload, hot-swappable dual batteries and IP67 protection.

$42,999USD · Per robot

Rated payload: 30 kg
Maximum speed: 6 m/s
Protection: IP67

Quantity

Availability and delivery are confirmed before payment.

Delivery

Destination country

Ships domestically within the U.S.

Technical specifications

The August 2026 manual lists a 41 kg configuration with a maximum speed of 6 m/s. Match payload and charging requirements to your deployment.

Motion & performance

Degrees of freedom: 12 joint + 4 wheel
Rated payload: 30 kg
Maximum speed: 6 m/s
Continuous stair height: 25 cm
Maximum slope: 45°
Turning: In-place turning; forward/reverse direction switching

Size & construction

Product model: ZYCXD125M
Material: Aluminum alloy + high-strength engineering plastic
Standing dimensions: 930 × 480 × 585 mm
Prone dimensions: 930 × 630 × 200 mm
Weight with battery: 41 kg
Wheel size: 8 inches
Battery weight: 3.3 kg each

Power & endurance

Battery: 504.9 Wh × 2, hot-swappable
Battery runtime: 5 ± 0.5 h no load / 3.5 ± 0.5 h full load
Operating range: 29 ± 1 km no load / 18 ± 1 km full load
Charging time: Less than 1.5 hours
Charging dock input: AC 220 V
Charging dock output: DC 63 V / up to 10 A

Equipment & operating conditions

Protection: IP67
Operating temperature: −20 to 55 °C

From the August 12, 2026 user manual, specification table. Runtime and range retain the stated load conditions. Laboratory results vary with environment and use.

Documents

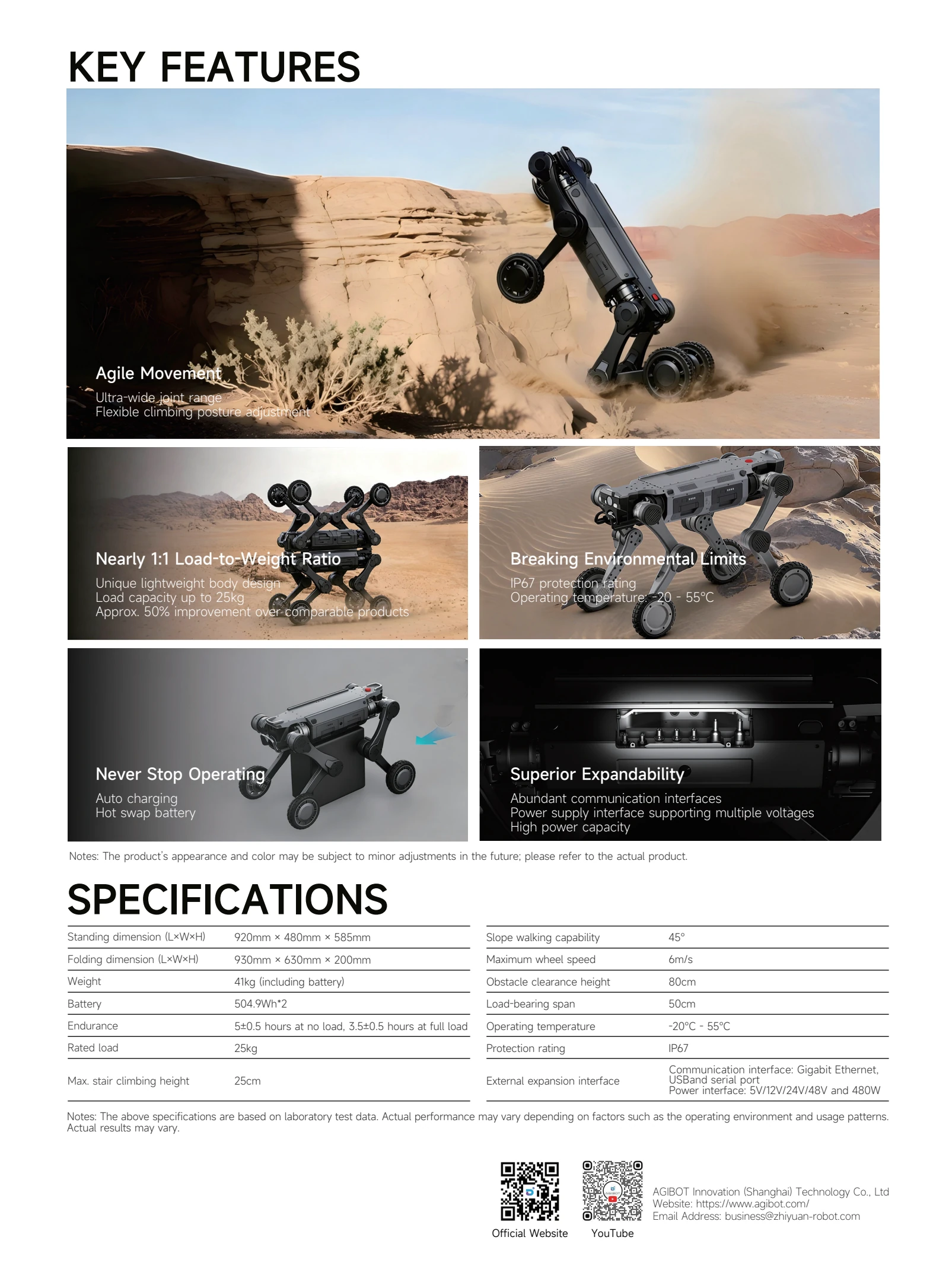

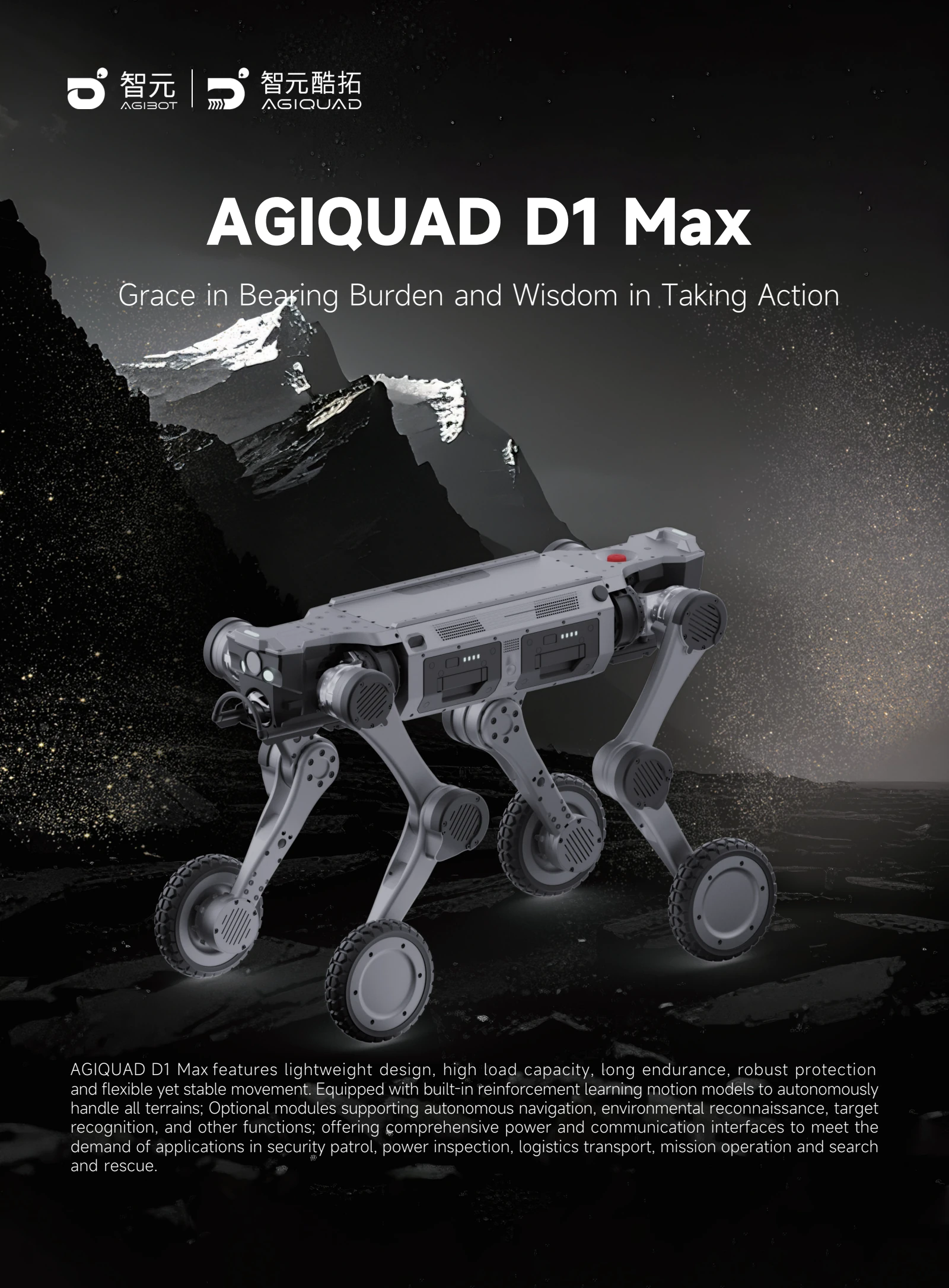

Product brochure

English · 2 pagesUpdated 2026-07-10

Download PDF

Earlier edition: this July brochure lists a 25 kg payload and 920 mm standing length. The August user manual lists 30 kg and 930 mm; the specifications above follow that newer manual.

Preview pagesClose preview
